Omaha Fire Pump Chart

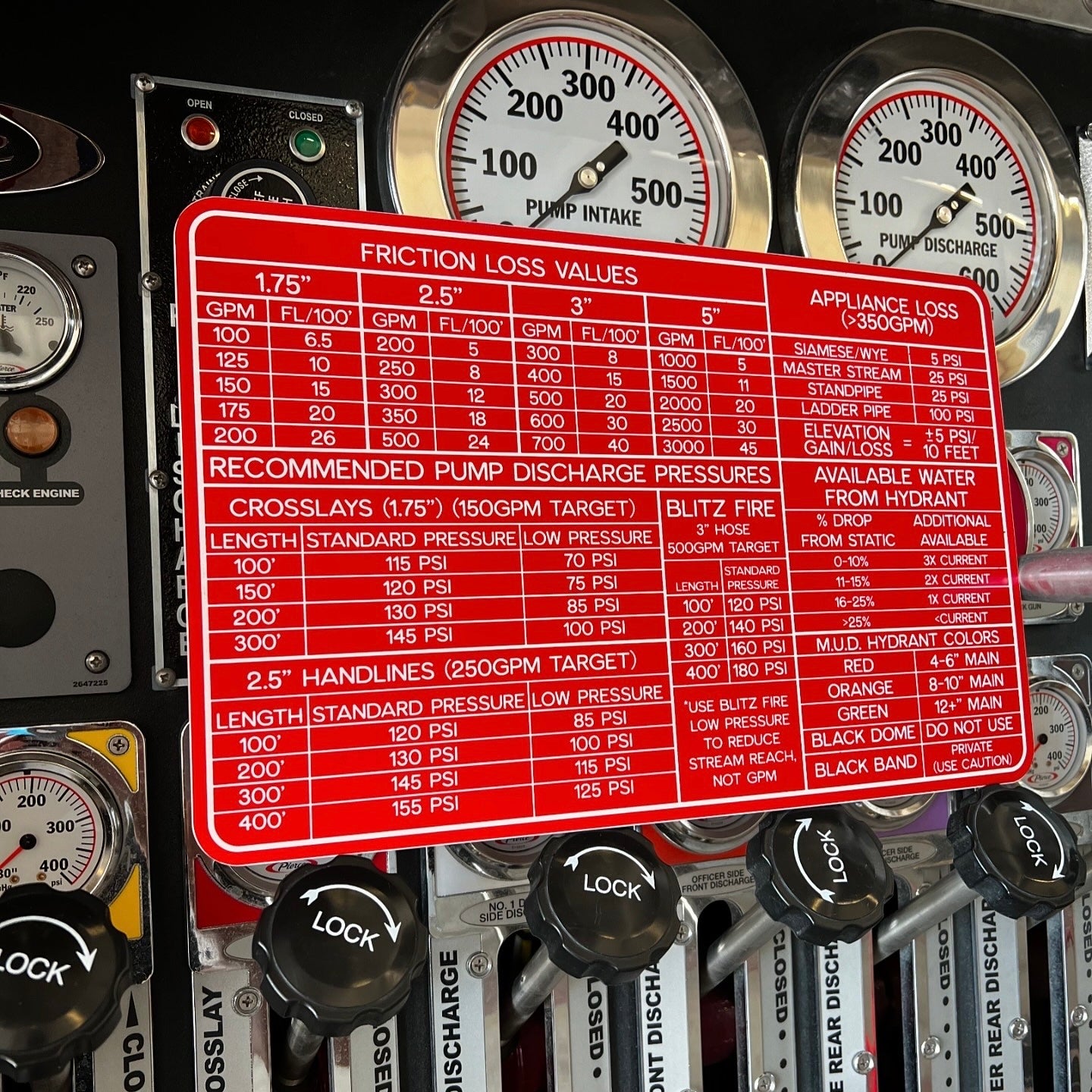

This waterproof acrylic chart is engraved with friction loss values and pump discharge pressures specific to Omaha Fire's current hose/nozzle package. Standard colors of white text on red background

2 Size Options:

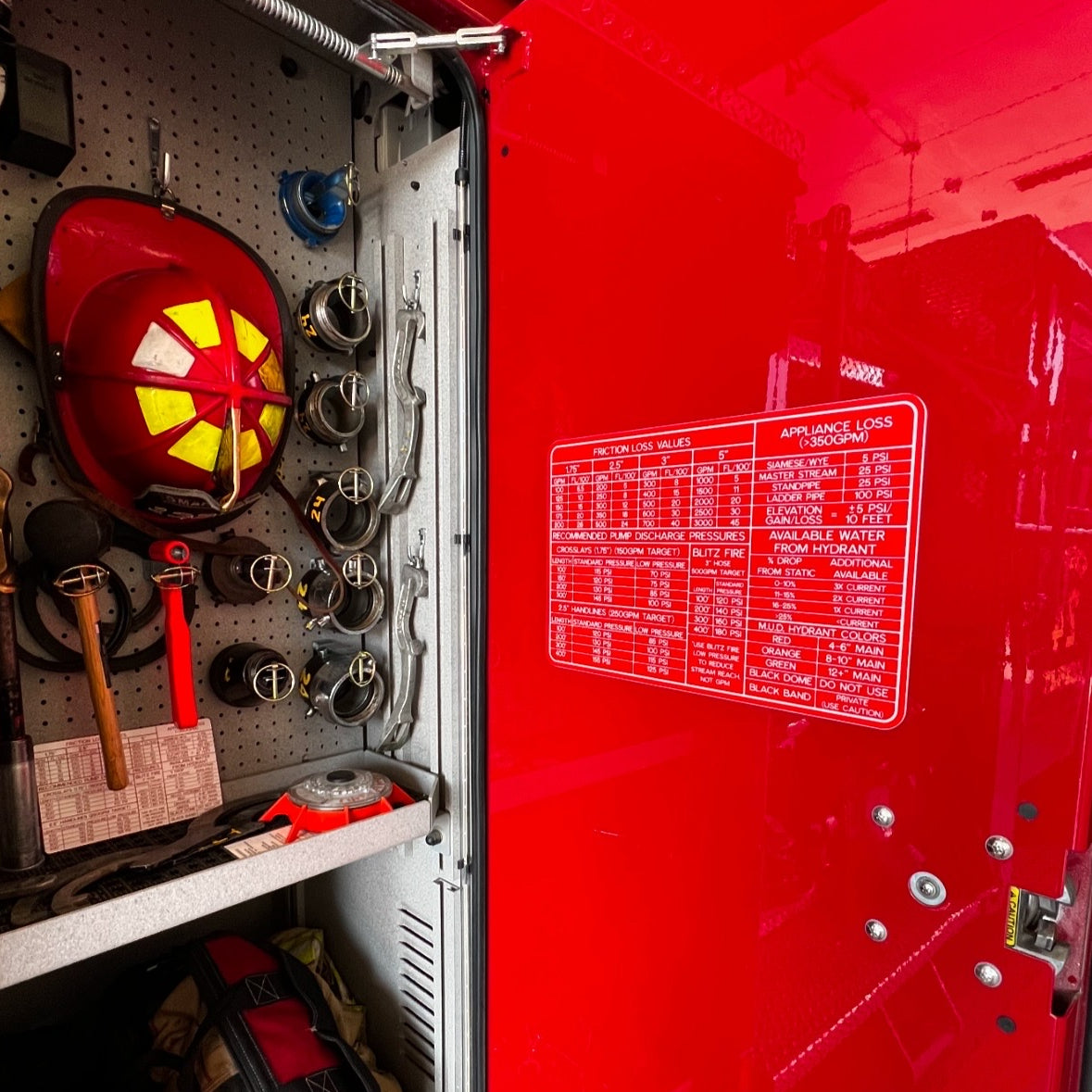

Large (10"x16") - Great for the rig, posting inside a compartment door or right at the pump panel

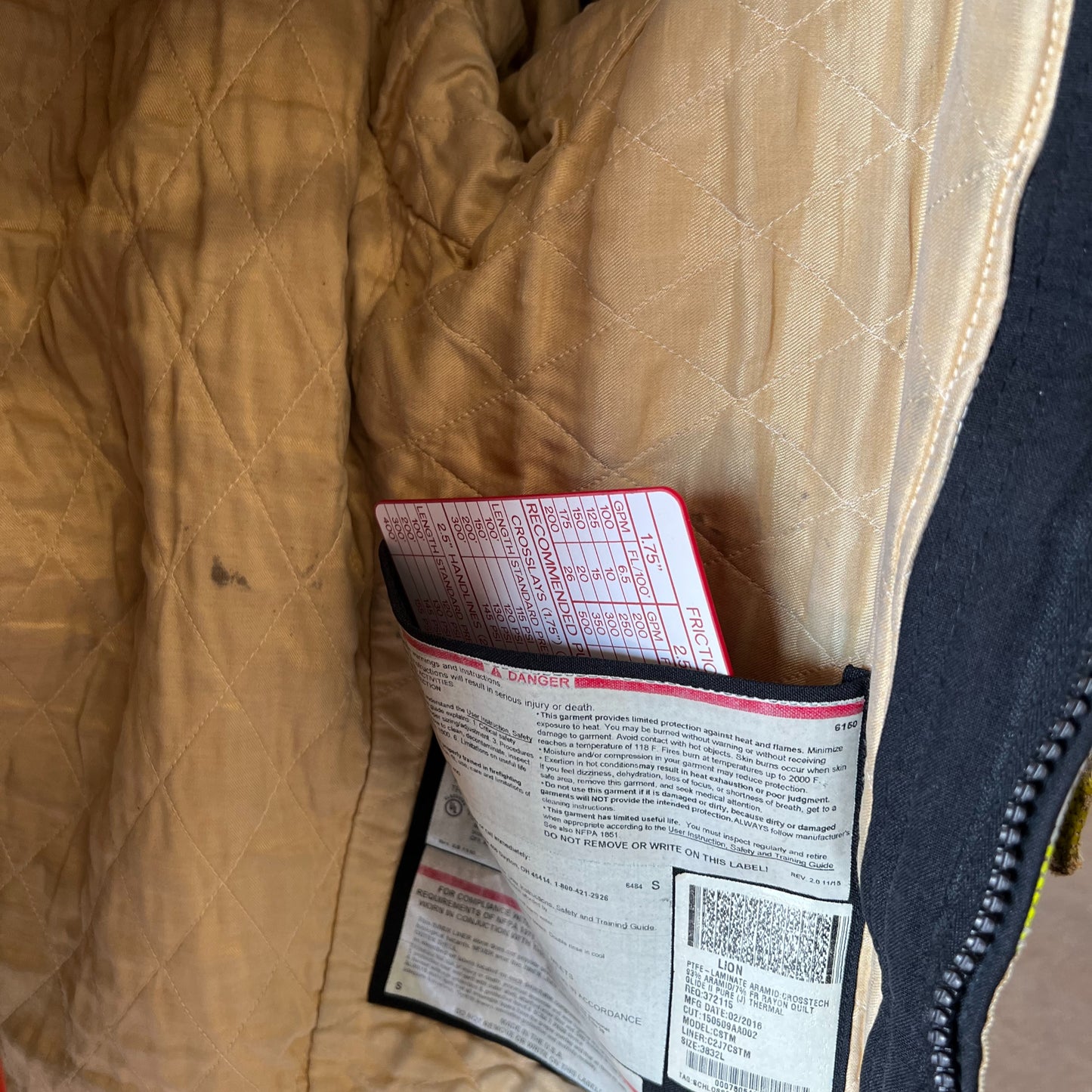

Pocket (5"-8") - Fits in pockets of turnout pants or coat, or toss it in your mask bag while running from station to station.

Includes the following information:
-Friction loss values (1.75", 2.5", 3", and 5")
-Crosslay Pump Discharge Pressures
-2.5" Pump Discharge Pressures
-Blitz Fire Pump Discharge Pressures
-Estimating available hydrant flow
-Appliance friction loss
-MUD Hydrant Colors
